Description

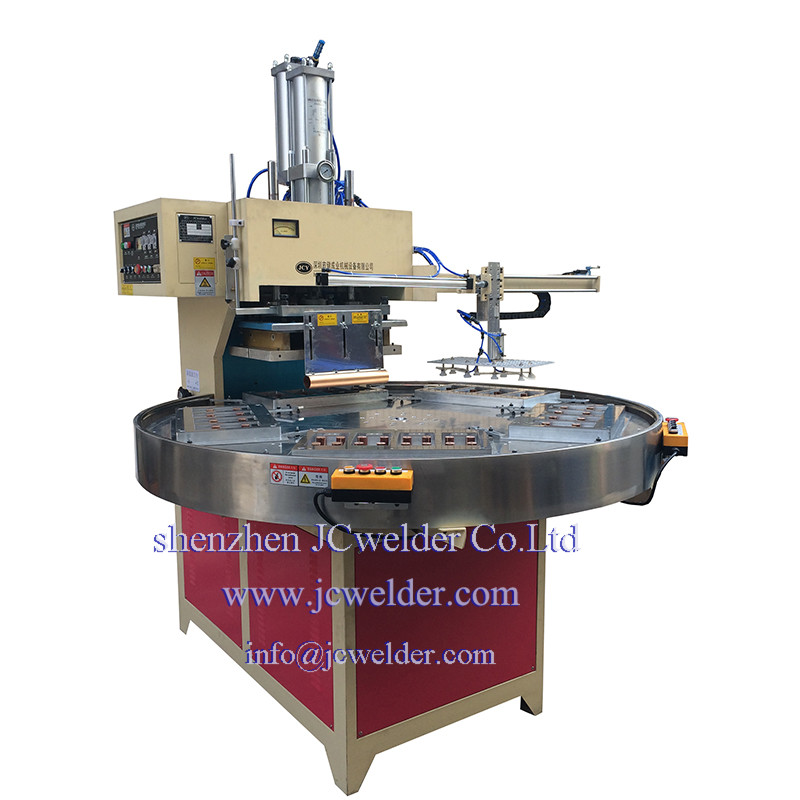

Model: JC-8KWET-4AC-R1
Name：high frequency pvc blister packaging machine for pvc double side blister AA battery packaging industry
Brief description：
round table high frequency pvc blister packaging machine for AA battery pvc plastic clam shell blister pack
Applications:
high frequency pvc double side blister welding machine for pvc double side blister Cell Coin Battery AA battery packaging industry. hf blister Cell Coin Battery packaging machine, radio frequency pvc clam shell welding machine for AA battery,lipstick and hardware package. Wide used for making handbag, pencil box/id card sleeve ,small spraying toys, leather products, carpet, plastic inflatable products clothes and shoes embossing tool, trademark, box, air tool, carpet, package bag, heat water bag, medical treatment articles, stationary, photo album, physical good, pvc folding box, glass box, garment logo welding and shoe upper and so on.
Features:
- Using high Q value vibration tube for stable and reliable output
- With round working table which rotate automatically/ by control button
- With 3~6 working positions on the table for choose which work alternatively
- pneumatic pressing system, max pressure can up to 350KG
- Heated electrode welding horn holding plate for good plastic welding result
- HF generator at a stabilized frequency of 27.12MHz. + -0.6%.
- With 5557 anti-spark device, for protecting machine and welding mould from over current
- Feeding voltage 1/3phases,220V/380V, 50/60Hz + ground or customized
- Production speed: 3000~4000 cycles per days( 8 working hours as usual).
- The program is pre-setting up, the circuit can be counter-action of two circuits
- With high precision temperature controlling can assure the coherence of welding

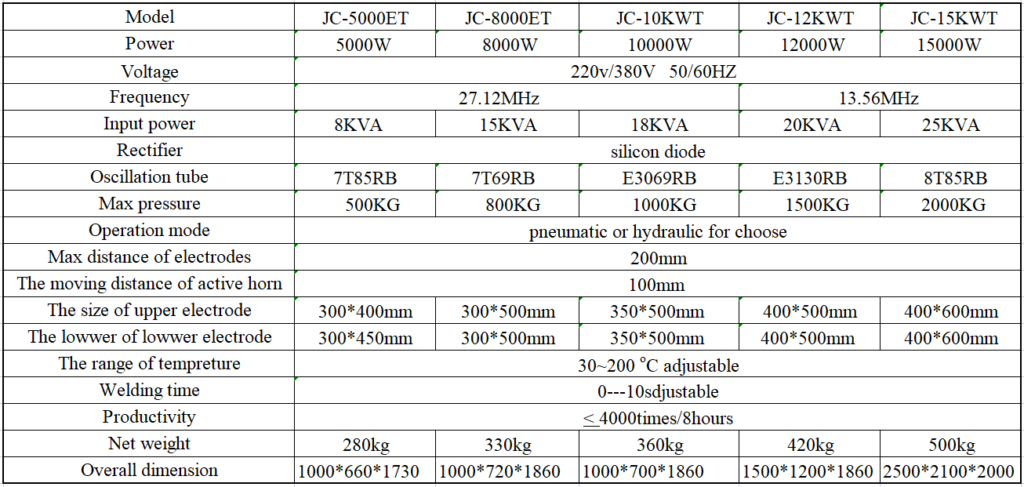

Specifications：

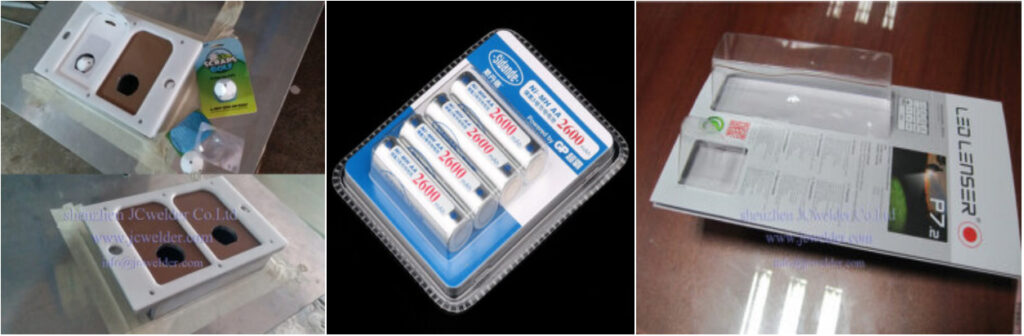

welding mold & samples
Working video of machines:
We already upload working video of this series machine to our YouTube video center, please kindly check the links
Mail us to get more details and latest quotation of machine

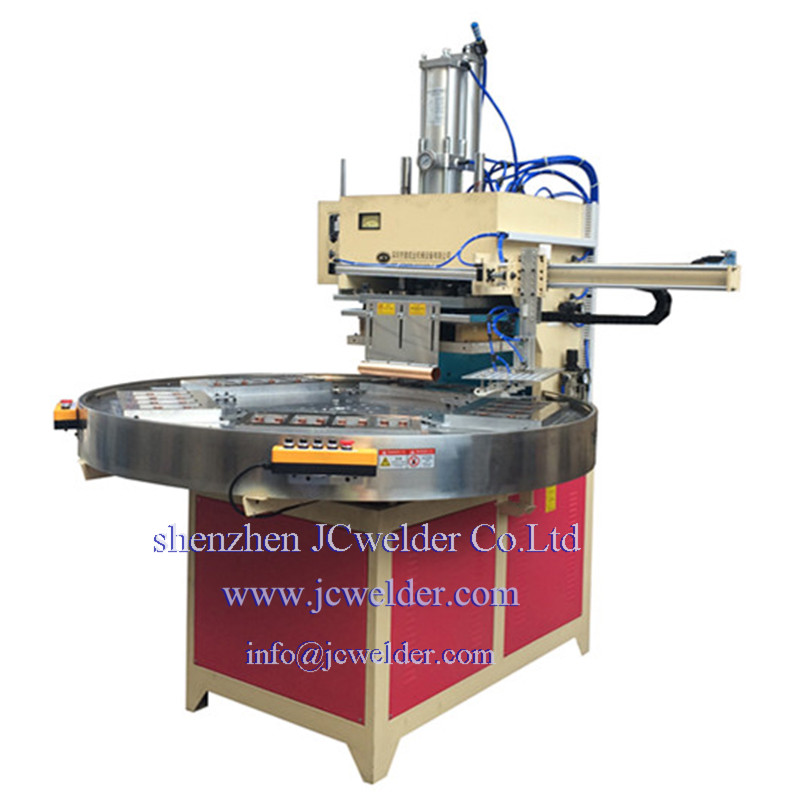

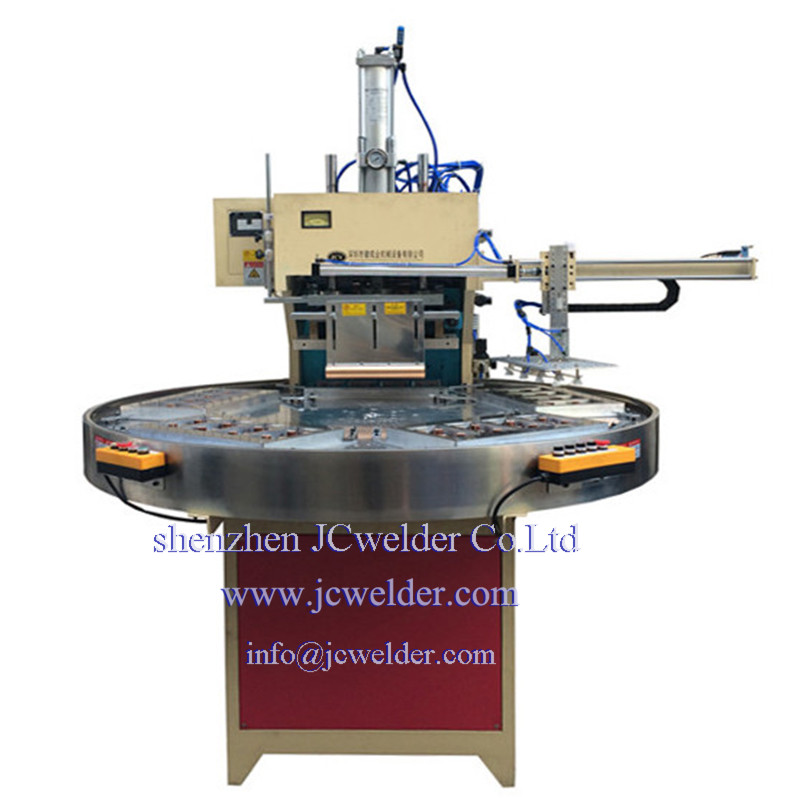

Similar design of high frequency pvc blister welding machine for reference：
- Standard design rotation high frequency welding machine model：JC-8KWET
- upgrade design rotation hf blister welding machine with robot model JC-8KWET-R1
- Brief design hand push high frequency pvc blister welder：JC-5000s
- Basic design sliding table hf pvc clamshell welding machine：JC-5000AT
Our Services
- Pre -sales service
- —1) Show right&clear function and detail of our machines in our website. Get Inquiry& consulting of machine directly.
- —2) Recommend the most suitable high frequency pvc blister packaging machine that client need by Samples or mails.
- —3) Client could send some material to our factory to make free welding test and get expert suggestion.
- After-sales service
- —1) Training how to install the high frequency pvc blister packaging machine .1-2days machine training free in our factory.
- —2) Engineers available to service machine overseas if client need and confirm in the contract
- —3) Our warranty is 1 year, all machine part can be replaced for free within 1year if broken(expect for man made).
- —4) we will provide 24hours 7days/per week online technology support service.
Packaging & Delivery—Pallet with plywood or ply wooden case & sea delivery
