Melamine crockery moulding high frequency preheating machine Melamine dishes forming equipment

Description

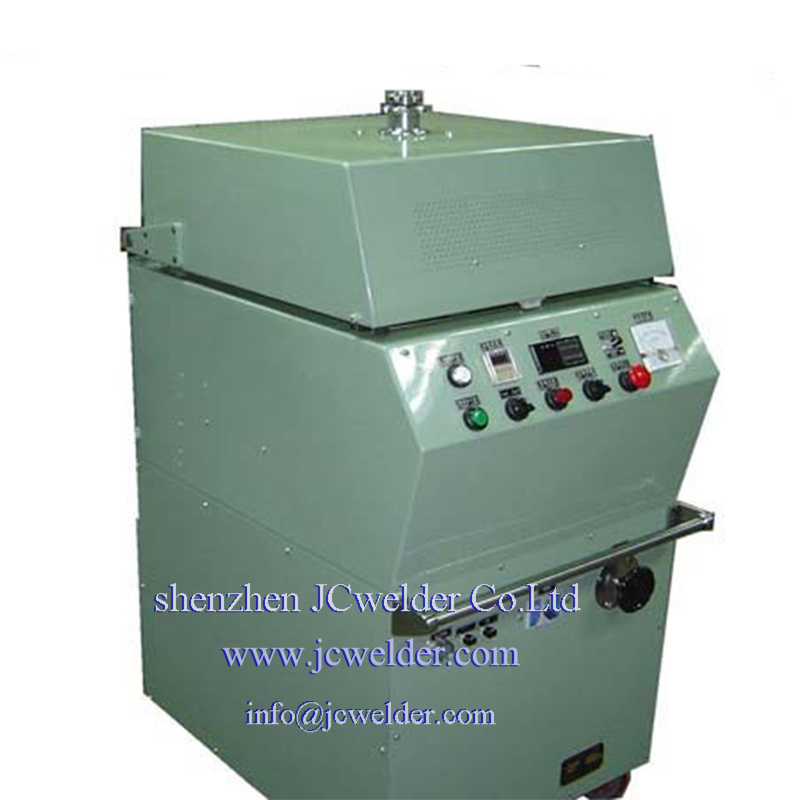

Name：Melamine crockery moulding high frequency preheating machine Melamine dishes forming equipment

Model:  JC-5203-10KW High Frequency Melamine Tableware Preheating Machine

Brief description：3-10KW High Frequency Melamine Tableware Preheating Machine

Features:

1. The molecules of the material move in the same direction under the action of the high-frequency magnetic field, so that the temperature of the material itself rises uniformly to 100 ~ 150ºCwithin a few seconds.The hardening time of the object is reduced to 2-10minutes.It is eliminate air bubbles inside of objects during molding procession.
2. High frequency pre-heating can remove the moisture and volatiles of the modeling material. The uniformly pre-heating could prevent blistering, stains and marks during forming process. The hardening of the formed material after processing will be very consistent. High frequency pre-heating could reduce Internal deformation, reduce defective products rate, improve product out looks, and also improve the performance of motors and machinery.
3. The melamine powder or some similar material which preheated by high-frequency pre-heating machine, will become a kind of high fluidity material. It can easily flow to every corner of the mold, which make the mold more durable and the product is easier to be formed. So the defective products rate is reduced.

How to produce melamine crockery tableware
       Step No.1:

• need to have two machine work together:
• 1)high frequency preheating machine
• 2)hydraulic strong pressure forming machine.

      Step No.2:

• design and make mold according to sample and drawing:
• 1)high melting point plastic heating mold for HF machine
• 2)aluminium forming mold for hydraulic pressure machine

      Step No.3:

• high frequency welding machine to preheat material to be certain temperature
• and then pour the material into the forming mold

      Step No.4:

• Fetch formed products from the hydraulic machine
• Polish the margin of product make it touch smooth.

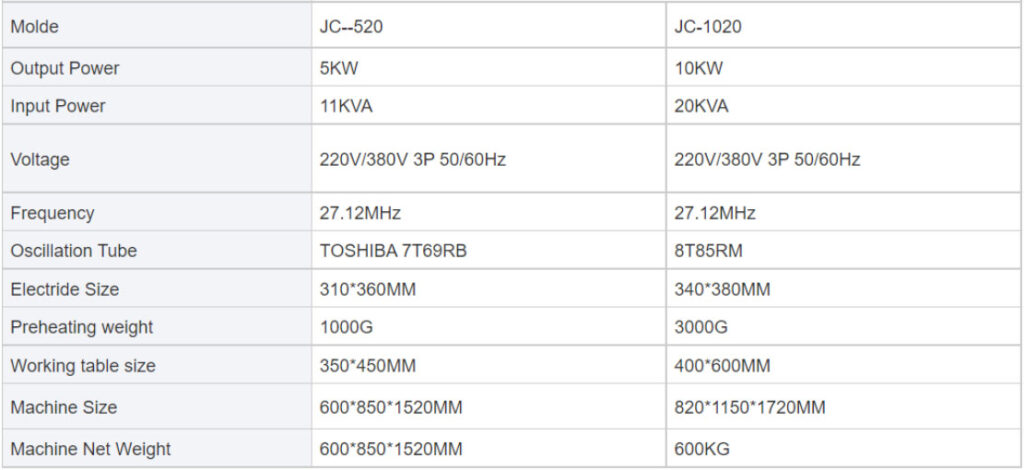

Specifications：

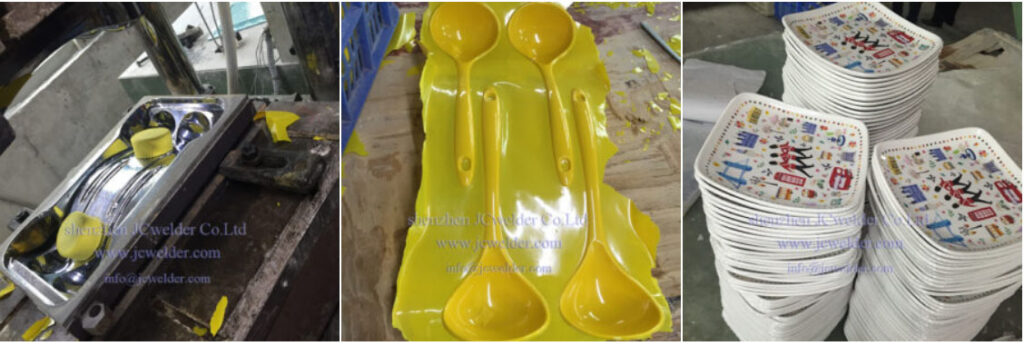

welding mold & samples：

Working video of machines:

We already upload working video of this series machine to our YouTube video center

Mail us to get more details and latest quotation of machine

other kinds of plastic welding machine for reference：

• automatic heat plate plastic clamshell and paper sealing machine model：JC-4060
• Rotation high frequency pvc blister /pvc fabric welding machine model JC-5000ET-R1
• Ultrasonic plastic welding machine for PVC,PP,ABS plastic welding：JC-2615/ JC-3215-4AC
• PVC tube boxes machine for packaging industry model：JC-200H/ JC-450S

Our Services

• Pre -sales service
• —1) Show right&clear function and detail of our machines in our website. Get Inquiry&consulting of machine directly.
• —2) Recommend the most suitable Hydraulic Swing Arm slipper cutting machine that client need by Samples or mails.
• —3) Client could send some material to our factory to make free welding test and get expert suggestion.
• After-sales service
• —1) Training how to install the Hydraulic Swing Arm slipper cutting machine .1-2days machine training free in our factory.
• —2) Engineers available to service machine overseasif client need and confirm in the contract
• —3) Our warranty is 1 year, all machine part can be replaced for free within 1year if broken(expect for man made).
• —4) we will provide 24hours 7days/per week online technology support service.

Packaging & Delivery—Pallet with plywood or ply wooden case & sea delivery
