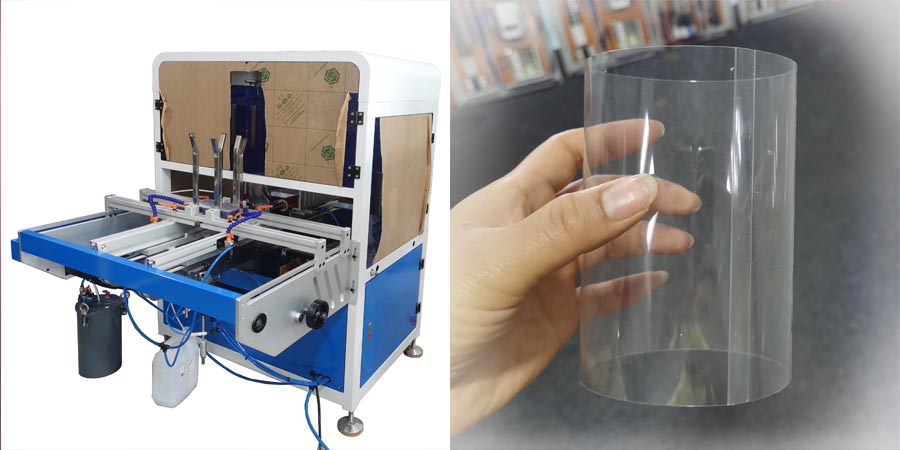

candy round tube box machine model JC-180S-AG working manual Part 1

Usage of candy round tube box machine

       This automatic plastic sheet cylinder gluing machine (Model: JC-180SA-G) is an automatic cylinder gluing and forming equipment that can make PVC and PET plastic coil materials into cylinders. This candy round tube box machine with some functions such as automatic material feeding, bending and forming, edge gluing with adhesive, and automatic cylinder pushing out. It is usually used for manufacturing packaging pipeline cylinders and packaging containers for food and daily necessities. It is the main production equipment for various circular PVC/PET plastic packaging boxes with different designs.

Features candy round tube box machine

  1. High-efficiency production: The candy round tube box machine adopts an automatic control system, which can achieve efficient production and improve production efficiency.
  2. High forming precision: By precisely controlling the forming parameters and pressure, the dimensional accuracy and shape consistency of the formed products can be ensured.
  3. Wide application range: The candy round tube box machineis suitable for the forming requirements of different sizes of PVC/PET sheets through adhesive bonding.
  4. Simple operation: Operators only need to carry out simple settings and monitoring to complete the forming process, and the operation is simple and convenient.
  5. High forming efficiency: The cylinder forming machine has the characteristic of rapid forming, couldcomplete the forming process of the cylinder, improving the efficiency.
  6. Suitable for mass production: It is suitable for occasions requiring mass production and can meet the needs of industrial production.

equipment for various circular PVC/PET plastic packaging boxes with different designs.

Equipment Parameters

        Customers can choose to add functions such as UV glue dispensing and cylinder punching according to their specific production requirements. After adding the corresponding functions, the working speed will be adjusted accordingly. Here, we only take the standard automatic candy round tube box machine as a reference. The following are the equipment parameters of the standard machine – automatic cylinder gluing forming machine.

equipment for various circular PVC/PET plastic packaging boxes with different designs.

  • Items: Specification
    Model: JC-180SA-G
    work technology: PVC/PET /glue sealing
    input voltage: 220V AC 50/60Hz single phase
    tube diameter: 45mm~200mm(for standard model)
    tube height:10~390mm
    material thickness: 0.12~0.5mm
    working power: 1200W
    air press range: 4~6pa 350L/min
    production range: 500~900pcs/hour( 100mm/length tube)
    Raw material width: 635mm /as max width
    suitable material: PET/PVC 片材/piece in sheet
    Precise: < + 0.1mm
    Optional function: PET / PVC /UVglue sealing
    mold change time: 15~20minute
    gross weight: 800kg
    Measurement: 1480*1000*1740mm

Note: We write this blog with reference to the article from our new website: www.tubeboxmachine.com
