Description

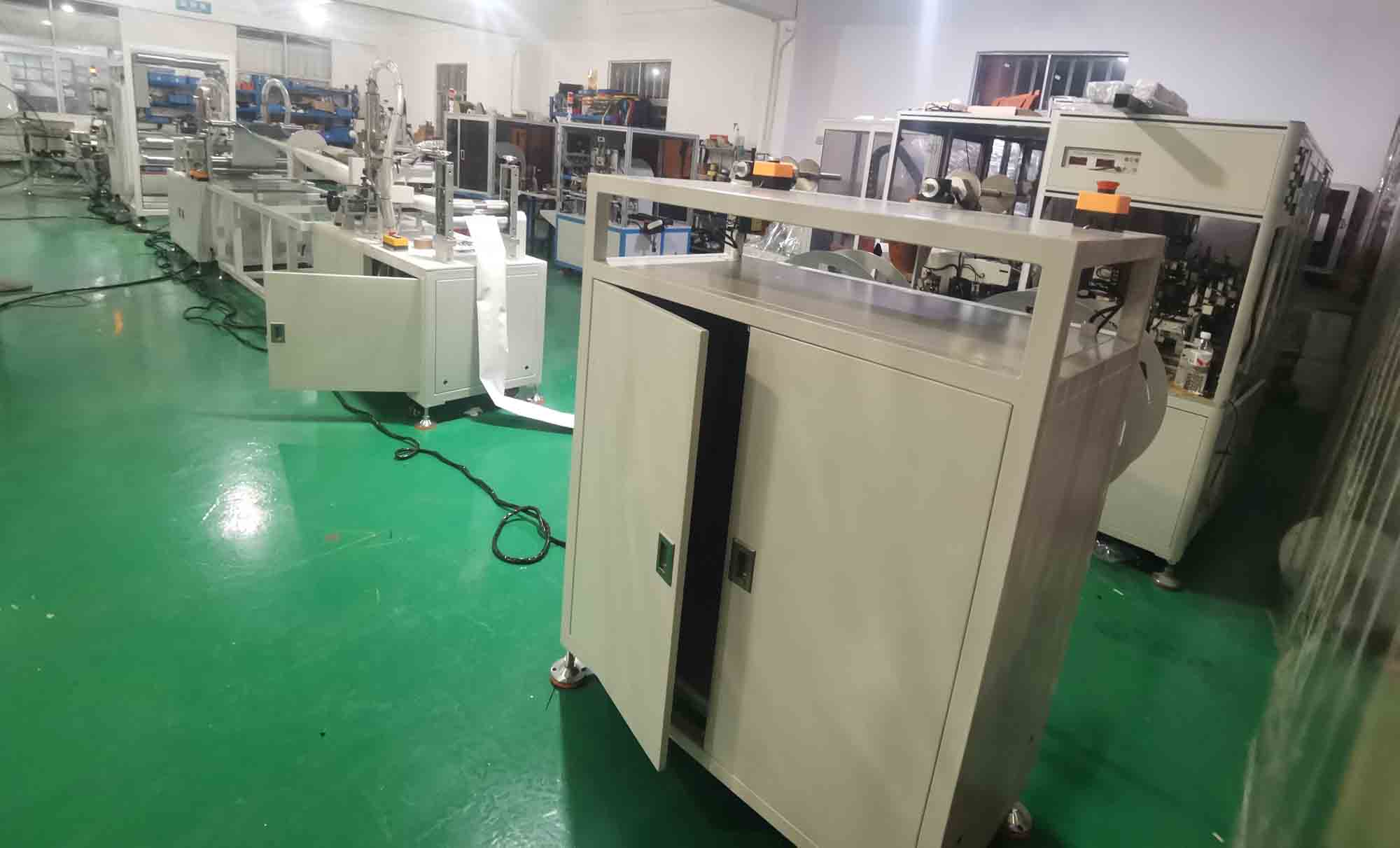

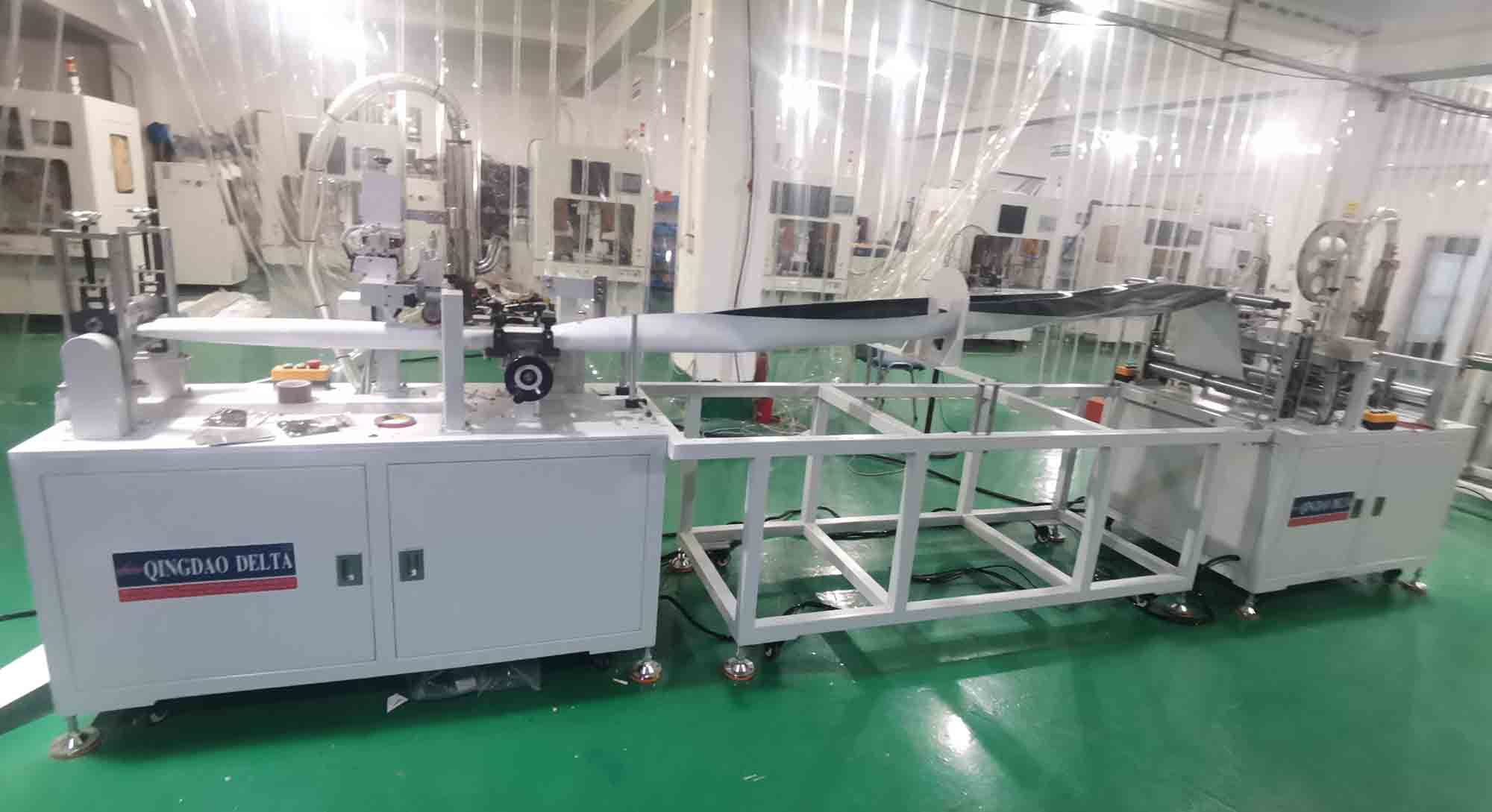

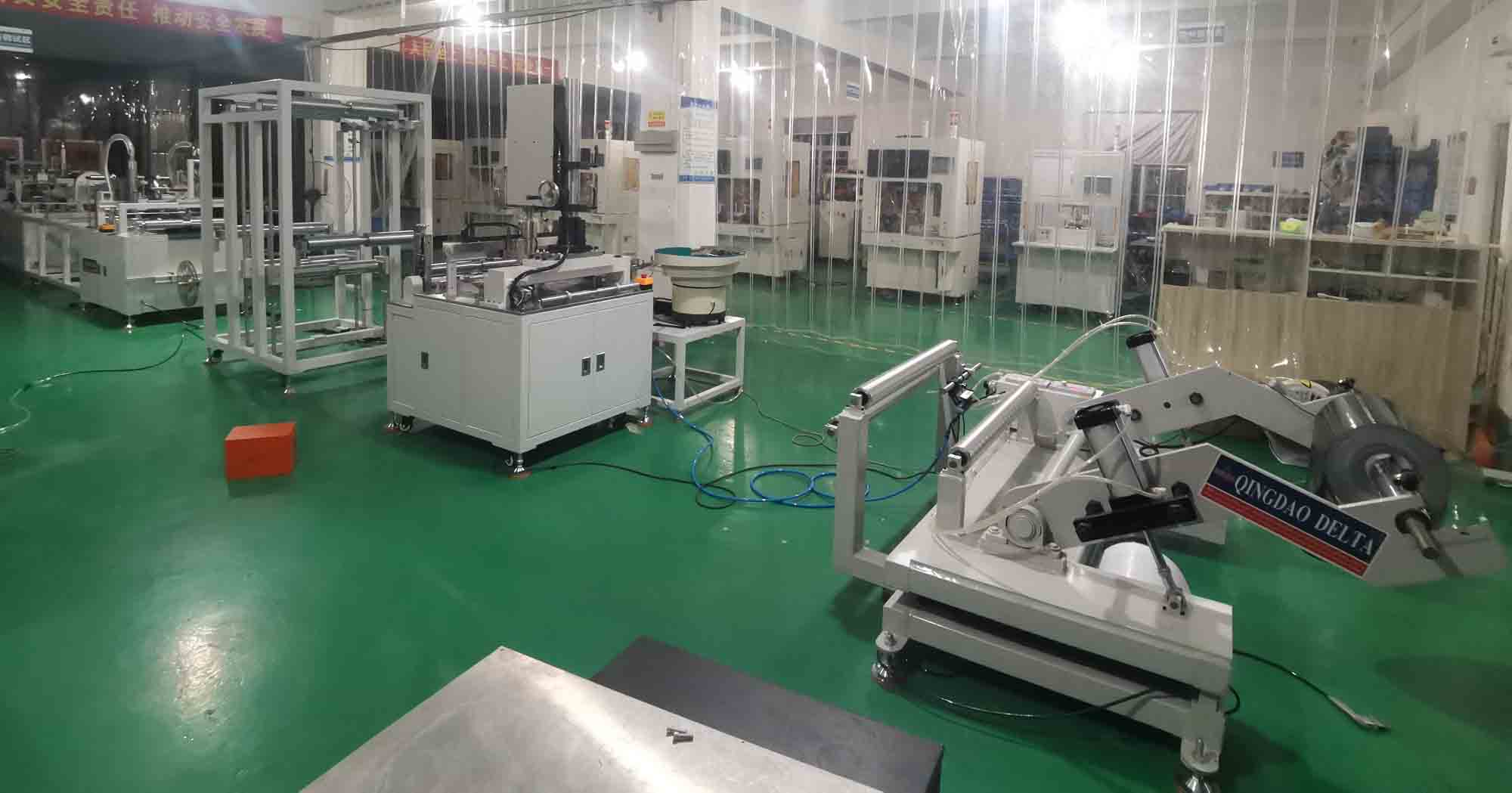

Name：Fully Automatic Plastic Fabric Agricultural Irrigation Hose Welding Machine
Elevate Your Irrigation Manufacturing with Our Agricultural layflat hose machine

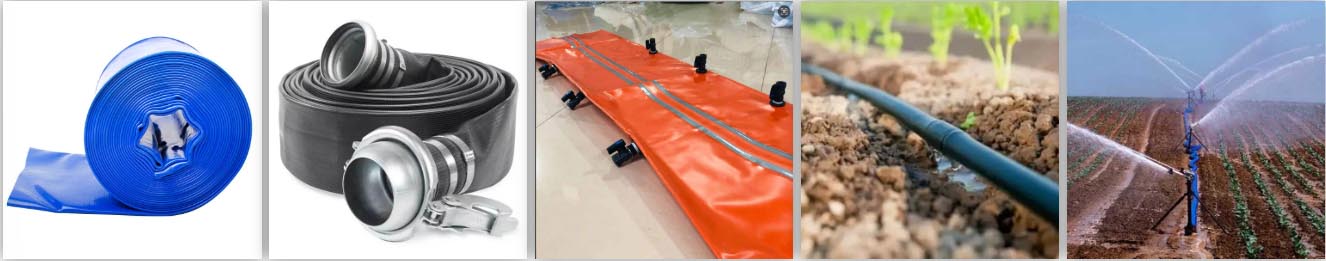

When it comes to producing durable, high-performance layflat hoses for farms, greenhouses, and arid-region water storage, our fully automatic plastic fabric agricultural irrigation hose welding machine is the ultimate solution. As a leading Irrigation hose production line provider, we deliver an all-in-one system that transforms raw plastic materials into finished Reinforced PVC irrigation hose and Blue layflat irrigation hose with unmatched speed and precision.
This specialized automated integrated device is designed for mass production of agricultural irrigation hoses. Our Farm irrigation hose machine achieves a production efficiency of 5–10 meters per minute, manufacturing hoses with diameters ranging from 50mm to 200mm. Widely used in agricultural scenarios such as farmland irrigation, garden watering, and water storage, it significantly reduces labor costs while ensuring uniform, stable hose quality—providing an efficient and reliable intelligent solution for agricultural equipment manufacturers.

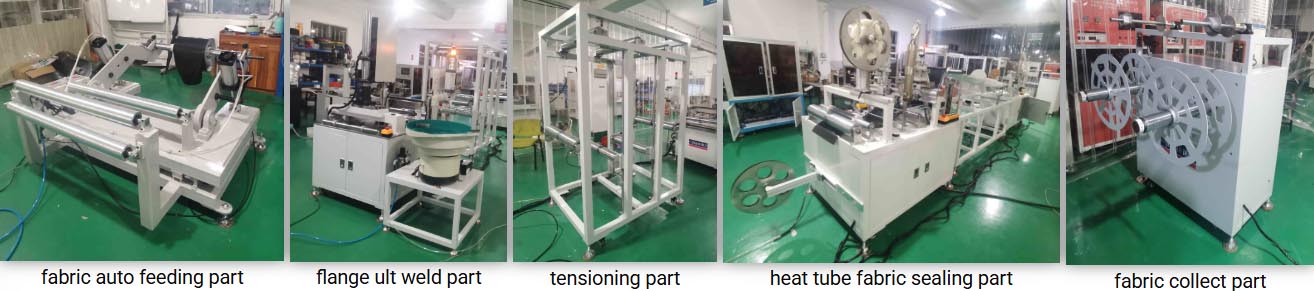

Key Parts of Our Flexible Farm Irrigation Hose Machine:
Equipped with a high-precision feeding mechanism, the machine smoothly conveys various plastic materials such as PVC and PE. Combined with an intelligent positioning and punching system, it flexibly adjusts hose diameters and positions according to production needs, ensuring accurate interface installation. Using ultrasonic welding technology, it firmly bonds interfaces with plastic sheets, creating welds with strong sealing, aging resistance, and pressure resistance. The plastic sheet edges are then bonded by hot air sealing to form hoses, which are automatically organized and stored by the winding mechanism, requiring minimal manual intervention.
Features：
- Feeding mechanism—composed of a motor, reducer, conveyor belt, etc., it is responsible for automatically conveying raw plastic sheet materials to the next process, ensuring the materials are flat and stable.
- Punching device—including plastic flange vibration plate, holes punching dies, diameter of the hole cutter is specialized made according to clients’ request.
- Ultrasonic welding machine—as a core component, it generates high-frequency vibrations to make molecules between the interface and plastic sheet rub against each other to produce heat, realizing firm welding.
- Hot air sealing device—including heaters, hot air nozzles, etc., it heats the edges of plastic sheets to a molten state and then bonds them under pressure to form water hoses.
- Winding mechanism—composed of a motor, reducer, winding roller, etc., it neatly winds the finished water hoses for easy storage and transportation.
- Control system—including a plc controller, touch screen, sensors, etc., it realizes full automatic control and allows setting and adjustment of various parameters.
- Safety protection device—including emergency stop buttons, separated control switches, it ensures the safety of operators and the normal operation of the equipment.
Specifications of Fabric Heavy-Duty Irrigation Hose Equipment
- Plastic hole punching part: pneumatic
- flange hole welding: ultrasonic
- control: plc and button control together
- fabric forming technology: heat sealing
- input voltage: ac 380v+220v 50/60hz
- air pressure requirement: 0.5-0.7mpa
- operating power: 20kw
- forming diameter: φ63-φ160mm
- ultrasonic power: 26khz 1.5kw
- equipment efficiency: 1-8 meters/min adjustment
- equipment dimensions: 20m x 2m x 2m
- equipment weight: about 3000kg
We uploaded our Working video of this machine and install instruction in detail to our youtube video center for your check：
Mail us to get more details and latest quotation of machine
other kinds of plastic welding machine for reference：
- automatic heat plate plastic clamshell and paper sealing machine model：JC-4060
- Rotation high frequency pvc blister /pvc fabric welding machine model JC-5000ET-R1
- Ultrasonic plastic welding machine for PVC,PP,ABS plastic welding：JC-2615/ JC-3215-4AC
- PVC tube boxes machine for packaging industry model：JC-200H/ JC-450S
Our Services
- Pre -sales service
- —1) Show right&clear function and detail of our machines in our website. Get Inquiry&consulting of machine directly.
- —2) Recommend the most suitable Heat Shrink Sleeve Steam Shrink Machine that client need by Samples or mails.
- —3) Client could send some material to our factory to make free welding test and get expert suggestion.
- After-sales service
- —1) Training how to install the Heat Shrink Sleeve Steam Shrink Machine .1-2days machine training free in our factory.
- —2) Engineers available to service machine overseasif client need and confirm in the contract
- —3) Our warranty is 1 year, all machine part can be replaced for free within 1year if broken(expect for man made).
- —4) we will provide 24hours 7days/per week online technology support service.
Packaging & Delivery—Pallet with plywood or ply wooden case & sea delivery
Start Your Irrigation Hose Production Line Today
Ready to scale your Agricultural layflat hose machine production? Our team will help you configure a Farm irrigation hose machine that fits your production goals, whether you need to add an Irrigation hose cutting machine or optimize for PVC layflat hose reel compatibility.
Get a free quote now and transform your production with the most advanced Irrigation hose production line on the market.
